DIN RECEPTACLES
CONNECTORS & RECEPTACLES
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information
51
RIGHT-ANGLE
ORDERING INFORMATION
RECEPTACLE
for Printed Circuit
Board Mounting

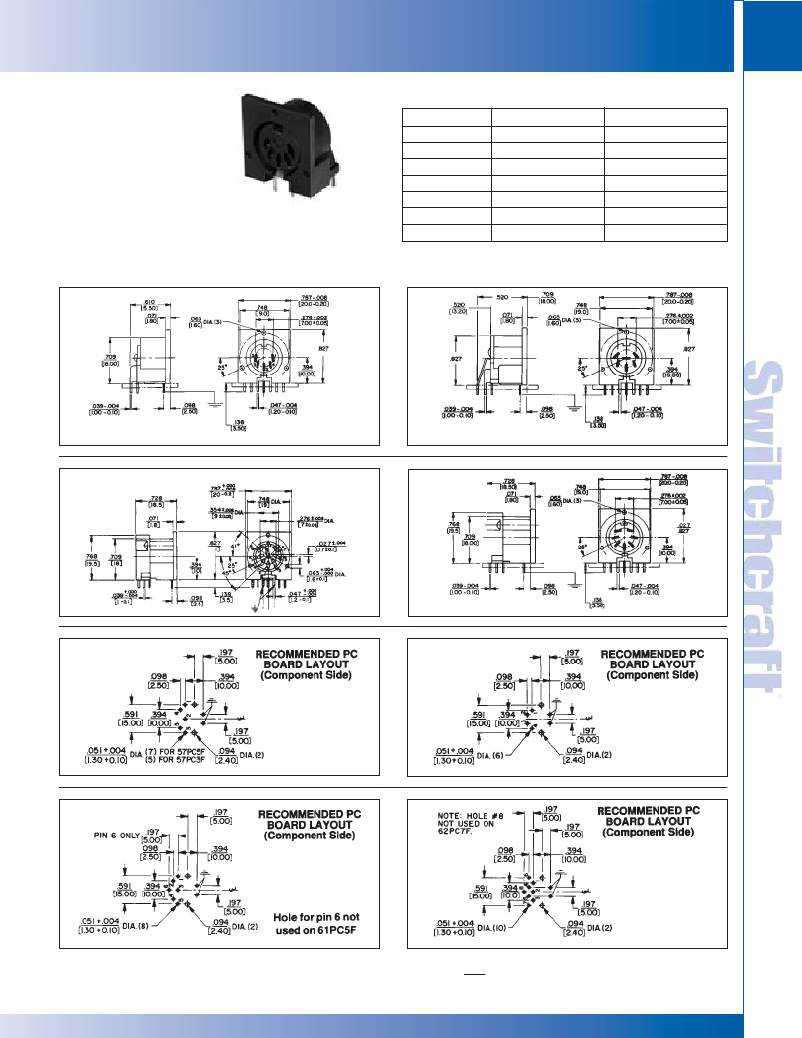

TYPE 57PC5F–TYPICAL
Mounts to PC boards. Plugs connect at right-angle to mounting
surface. Part Number 57PC3F mates with either 3 or 5 pin
Part Number
? 57PC3F
? 57PC5F
? 60PC4F
? 61PC5F
? 61PC6F
? 62PC7F
? 62PC8F
Description
3 contacts at 180°
5 contacts at 180°
4 contacts at 210°
5 contacts at 240°
6 contacts at 240°
7 contacts at 270°
8 contacts at 270°
Contact Arrangement
B
F
D
E
G
H
N
(at 180°) plugs because of two extra blanks in contact insert.
ground contact provides complete shielding through receptacles.
? Available on special order only; contact Switchcraft for price and delivery.
61PC5F, 61PC6F
.709
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
